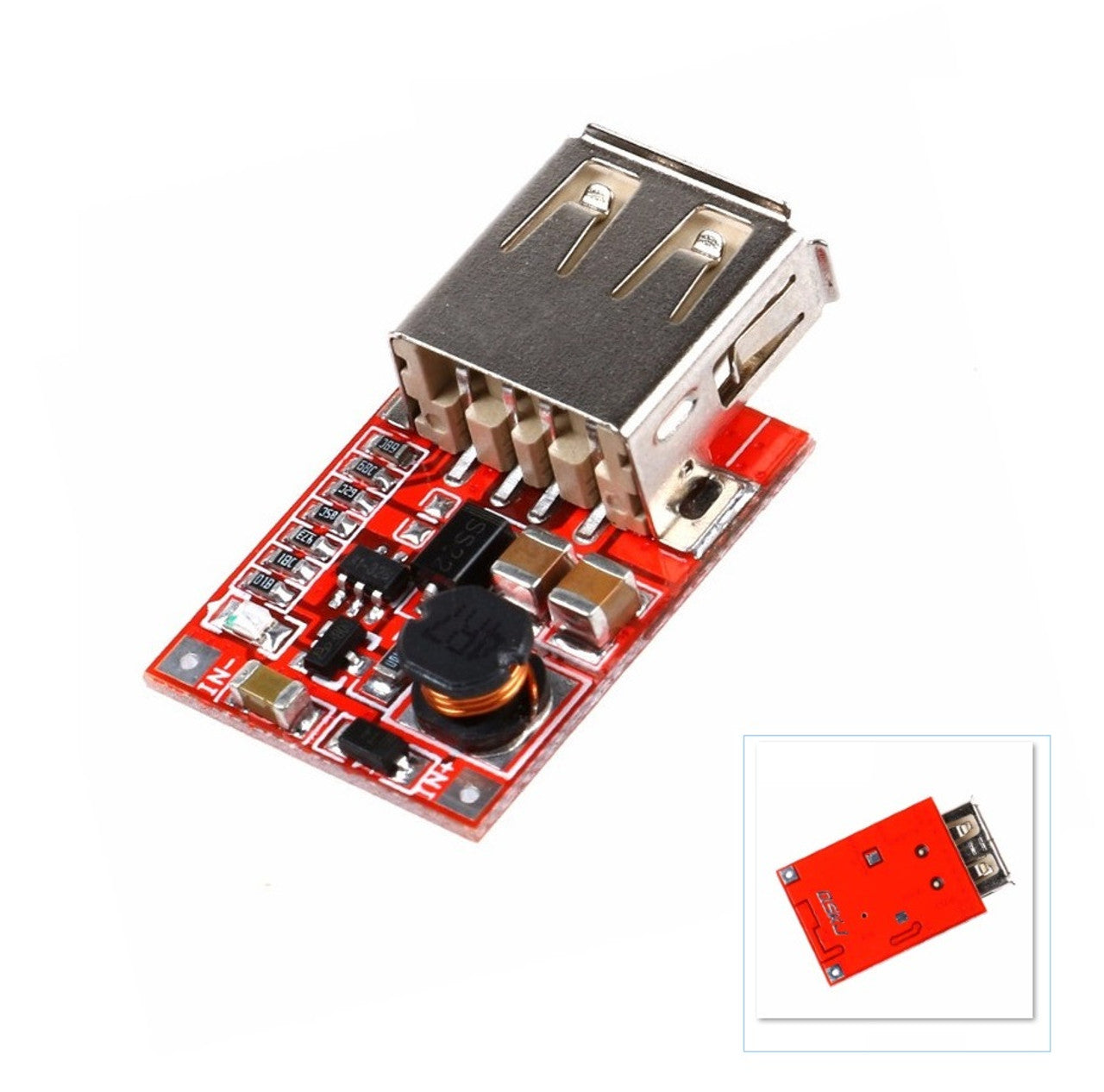

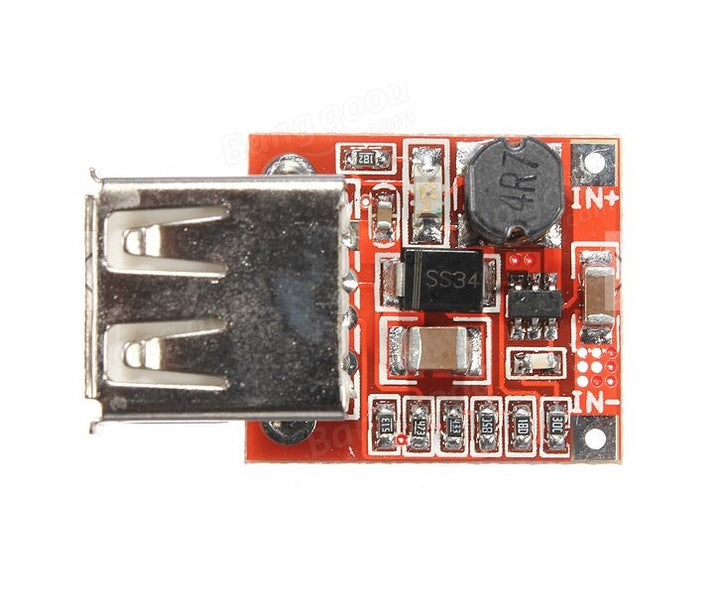

Step up usb 3V To 5V 1A

Specification:

Module properties: Non-isolated step-up module (BOOST).

Input voltage: 2.5-6V.

Output voltage: 4-12 V (Adjustable (need to replacing the resistance to adjustable), the default 5 v).

Output current: 1000mA (Max).

Efficiency: 92%(Max) (the higher the input voltage, the higher the efficiency).

Switching frequency: 1MHz.

Output ripple: 20mV (MAX).

Operating temperature: Industrial (-40°c to +85°c).

Voltage regulation: ±2.5%.

Short circuit protection: None (please use the lithium battery with protection).

Input: IN + postive, IN - negative.

Output: USB output.

Size: 3 x 1.3 x 0.8cm.
