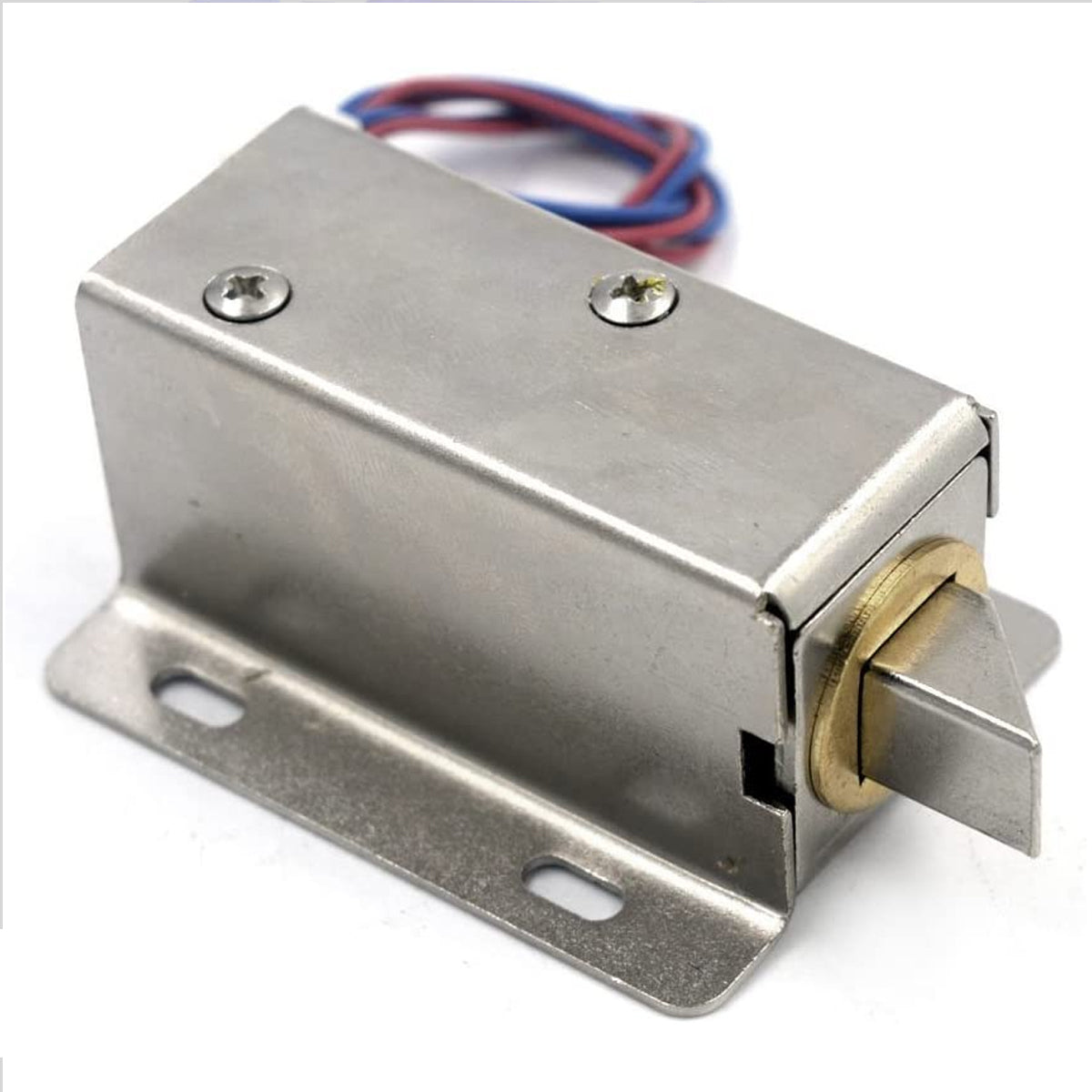

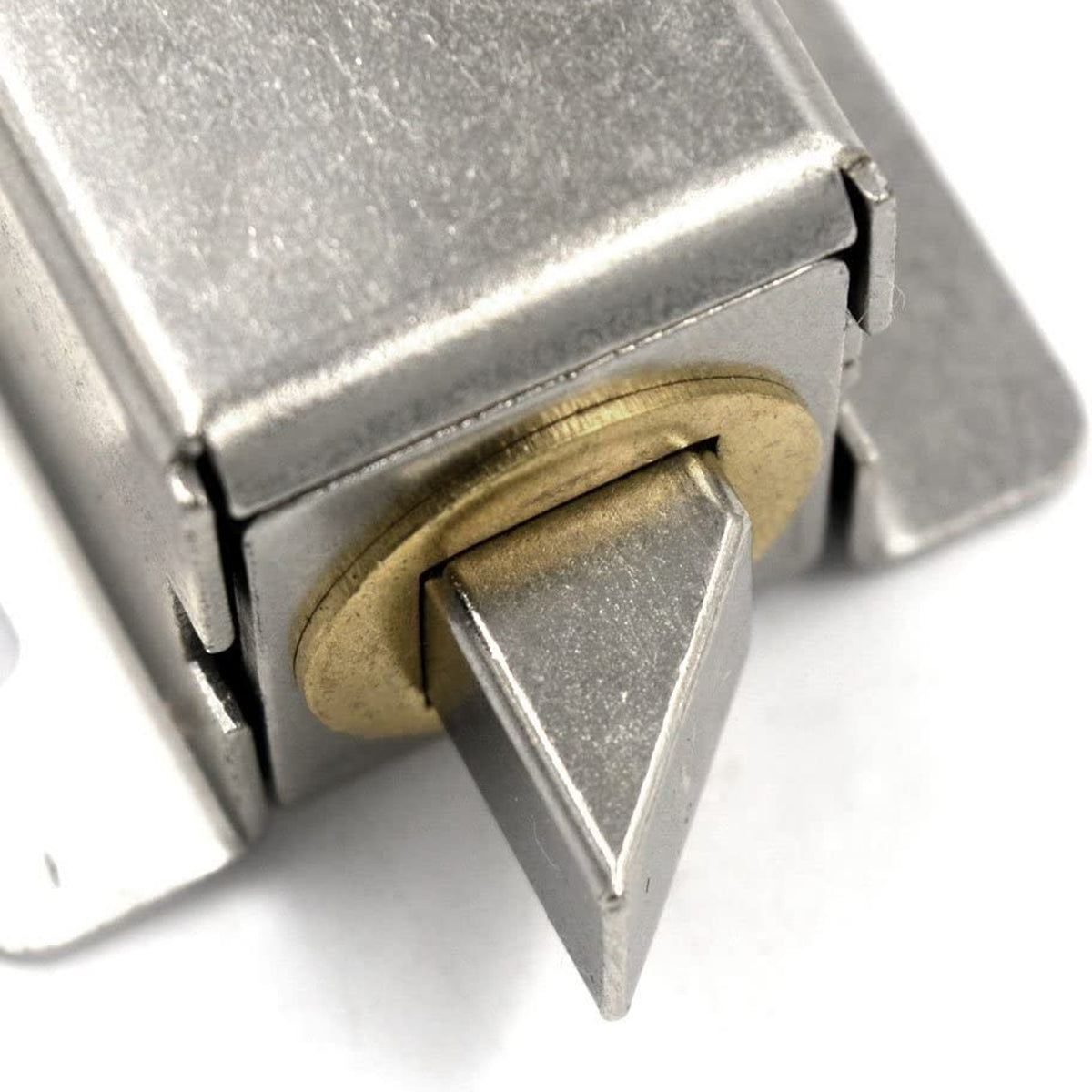

12v Solenoid Electric lock

Technical specs

12VDC (you can use 9-12 DC volts, but lower voltage results in weaker/slower operation)

Draws 650mA at 12V, 500 mA at 9V when activated

Designed for 1-10 seconds long activation time

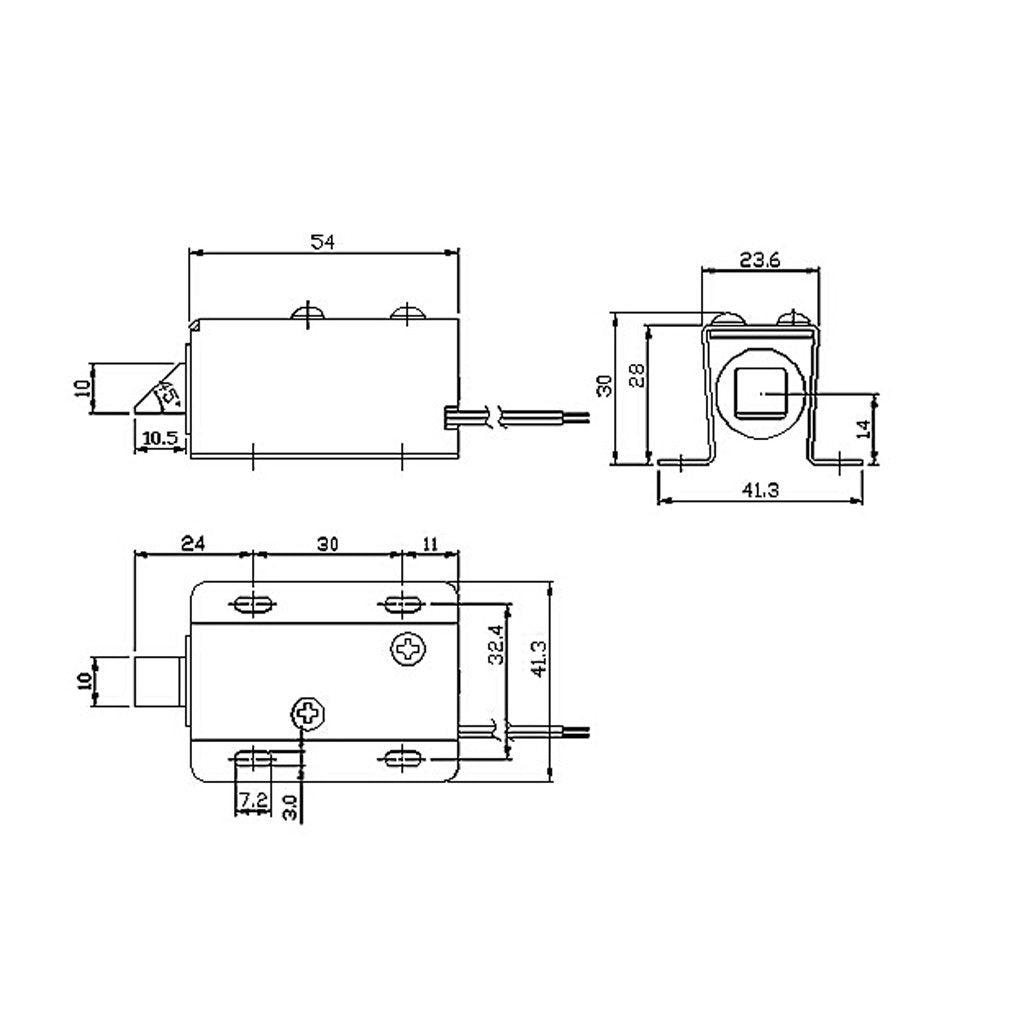

Max Dimensions: 41.85mm / 1.64" x 53.57mm / 2.1" x 27.59mm / 11.08"

Dimensions: 23.57mm / 0.92" x 67.47mm / 2.65" x 27.59mm / 11.08"

Wire length: 222.25mm / 8.75"

Weight: 147.71g
