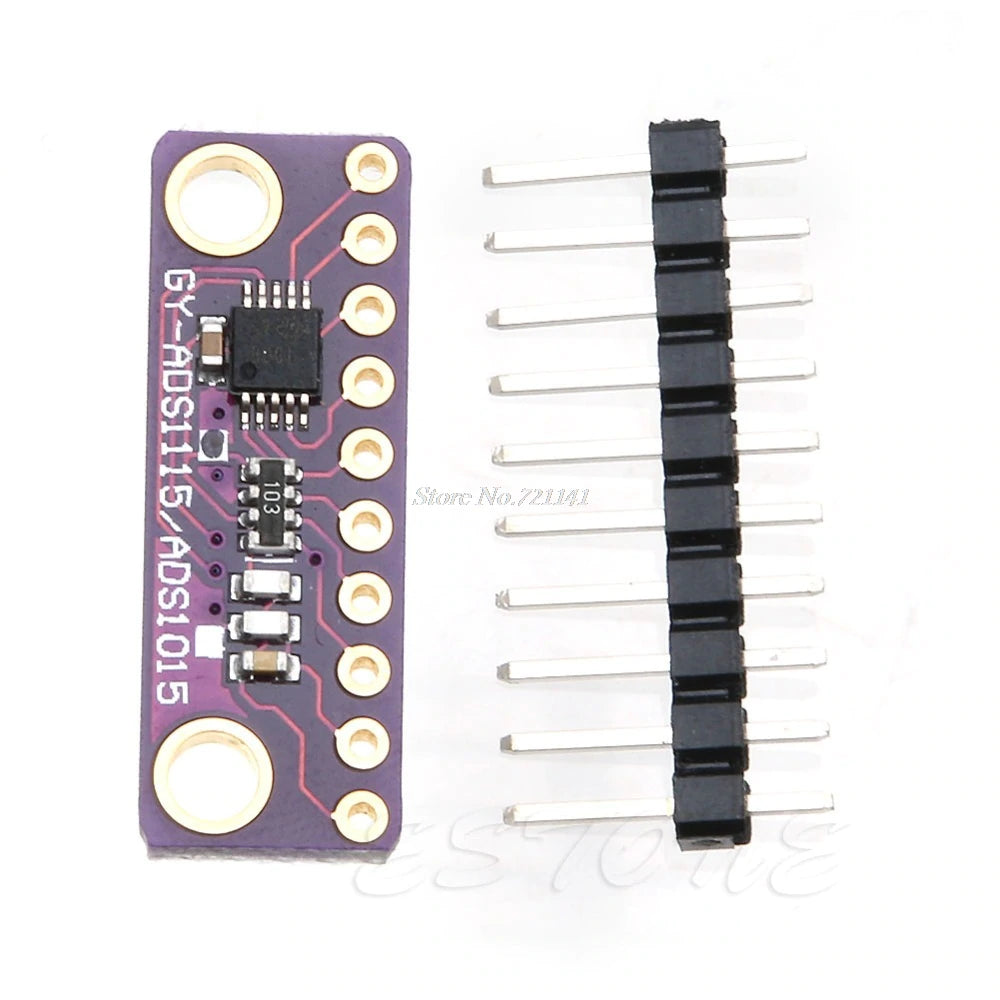

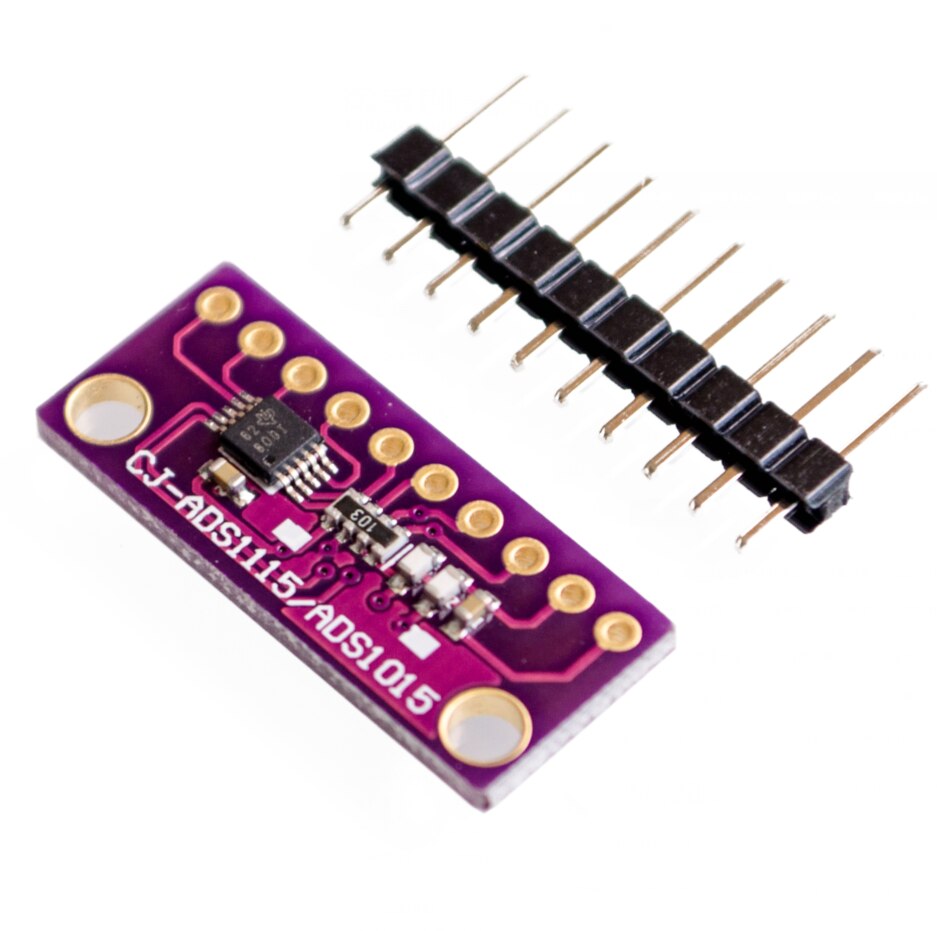

I2C ADS1115 16 Bit ADC 4 channel

WIDE SUPPLY RANGE: 2.0V to 5.5V

LOW CURRENT CONSUMPTION: Continuous Mode: Only 150A Single-Shot Mode: Auto Shut-Down

PROGRAMMABLE DATA RATE: 8SPS to 860SPS

INTERNAL LOW-DRIFT VOLTAGE REFERENCE

INTERNAL OSCILLATOR

INTERNAL PGA

I2C INTERFACE: Pin-Selectable Addresses

FOUR SINGLE-ENDED OR TWO DIFFERENTIAL INPUTS

PROGRAMMABLE COMPARATOR

This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers.
