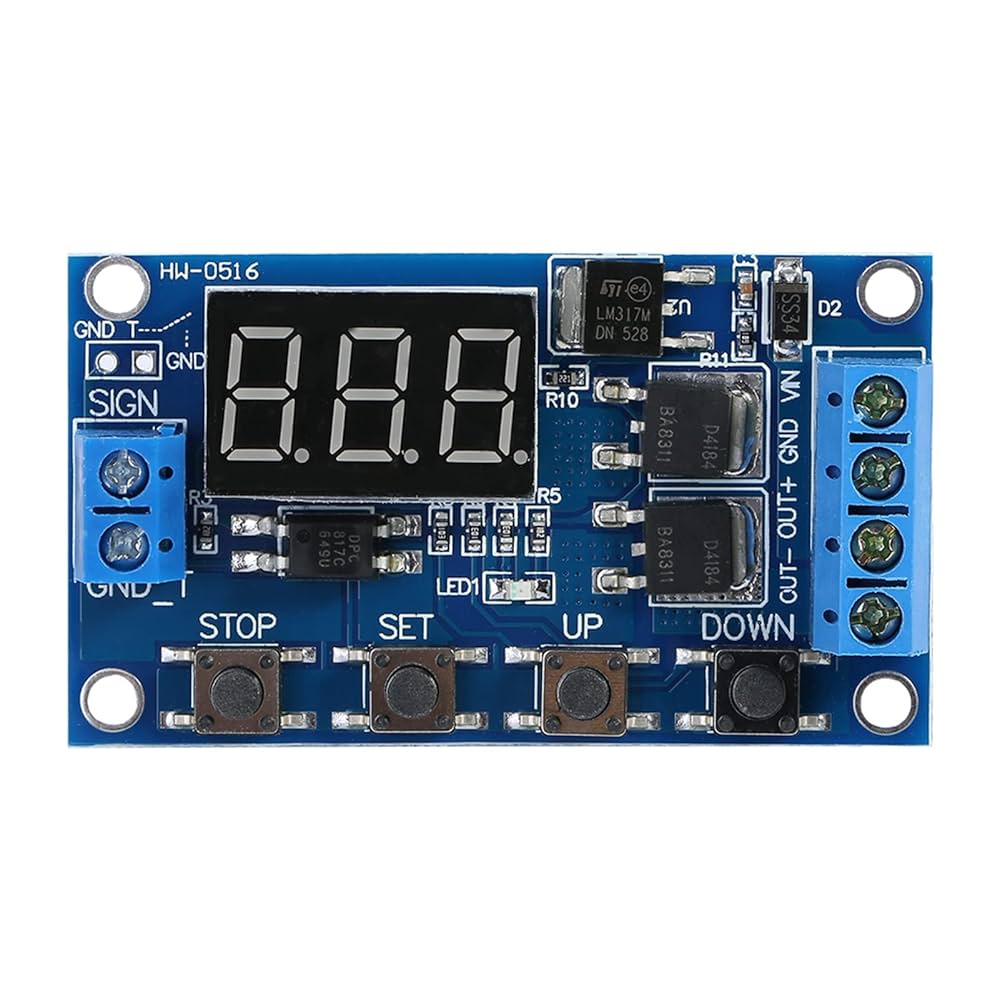

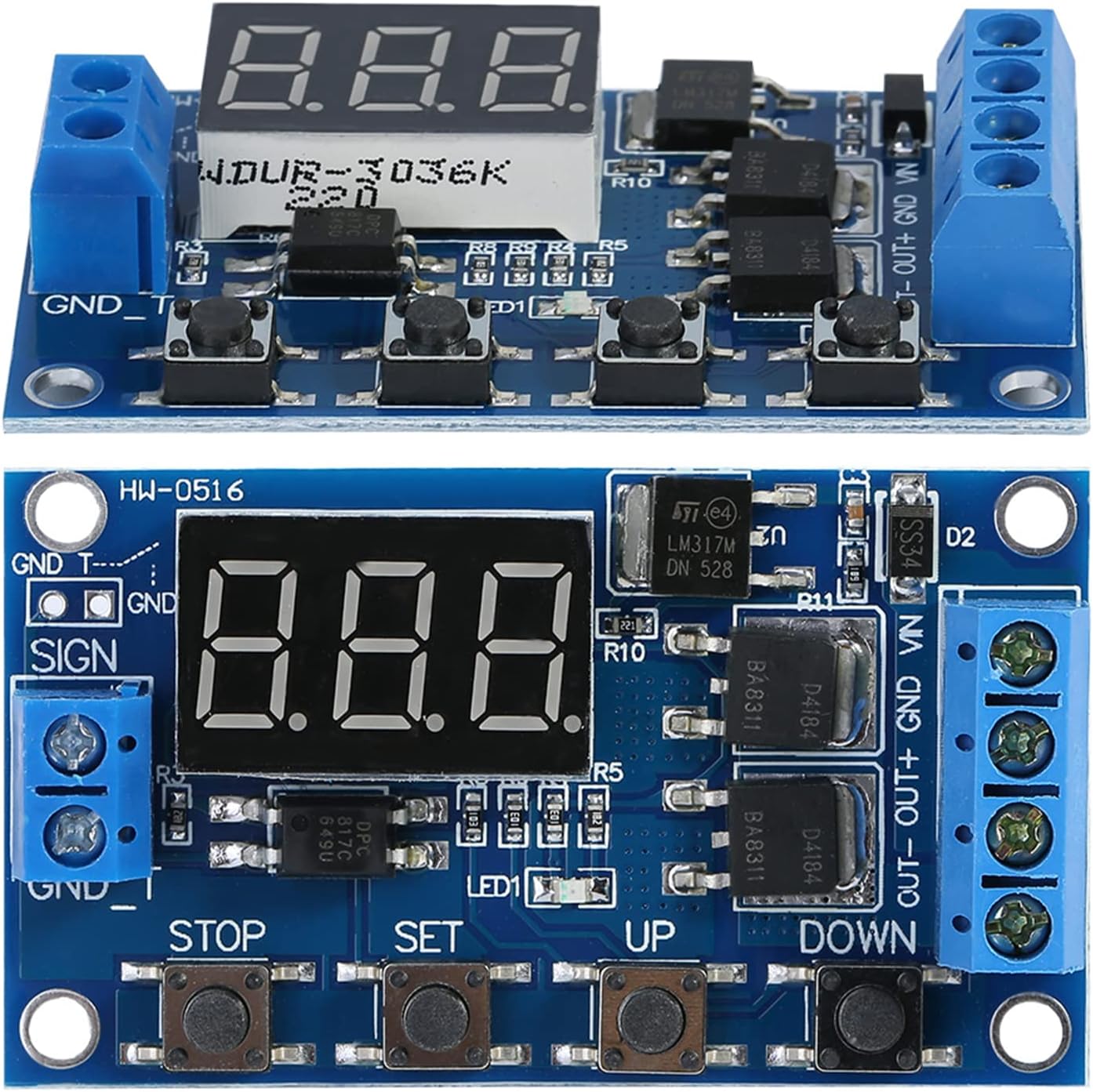

Timer Module DC 12-24v

Specificatoins of DC 12-24VDual MOS Time Delay Cycle Timer Module:

• Input voltage: 5 to 36 volts
• High excitation signal voltage: 3 to 24 V DC
• Current: 50mA
• Current (idle): 20mA
• Temperature range: -40 to 85
• Size: 60x34.5x12mm
• The time measurement range: 0.1 seconds to 999 minutes
• Power output: 400W (5 to 36 V DC with 15A current at room temperature)
• With signal isolation by optocoupler to prevent noise
• Protection against short circuit and reverse polarity
